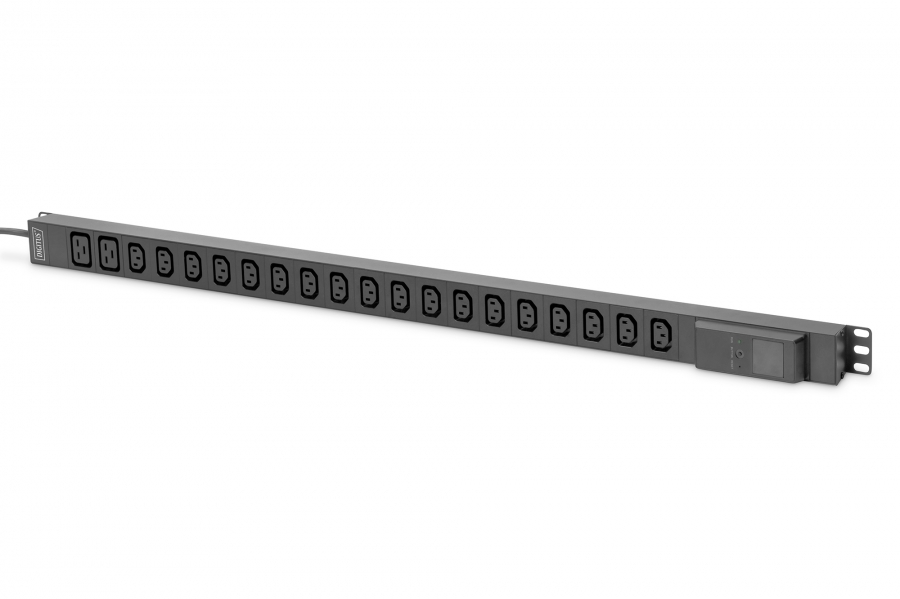

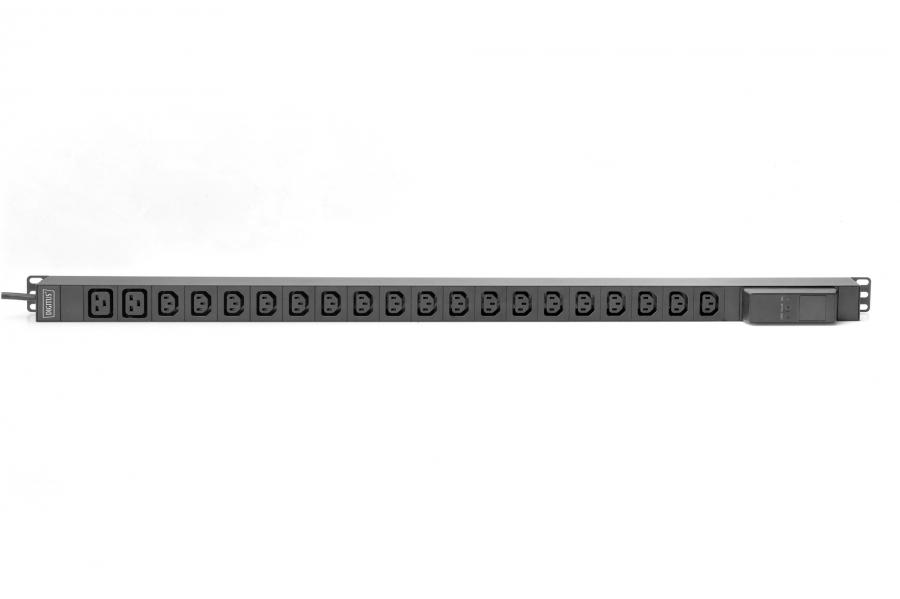

Digitus Local monitored PDU, 1-phase, 18 x C13, 2 x C19
Previous Next

Digitus Local monitored PDU, 1-phase, 18 x C13, 2 x C19

Digitus

DN-95622

New

Add to Compare
Local monitored PDU,vertical,250V,16A,18xC13,2xC19 16A ammeter,16A DIN49441 plug,3m cable

Safe and professional power distribution solution with local metering for monitoring loads in network and server racks.

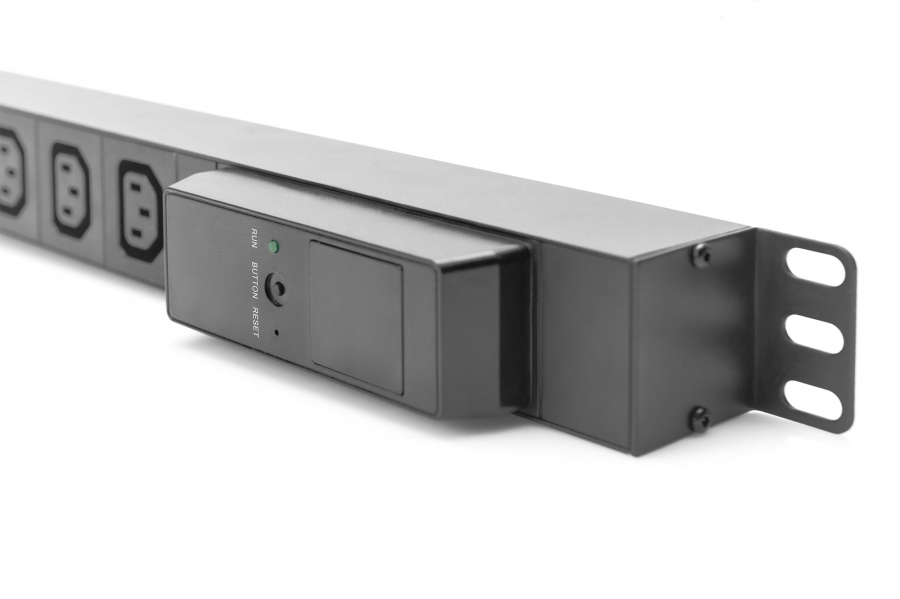

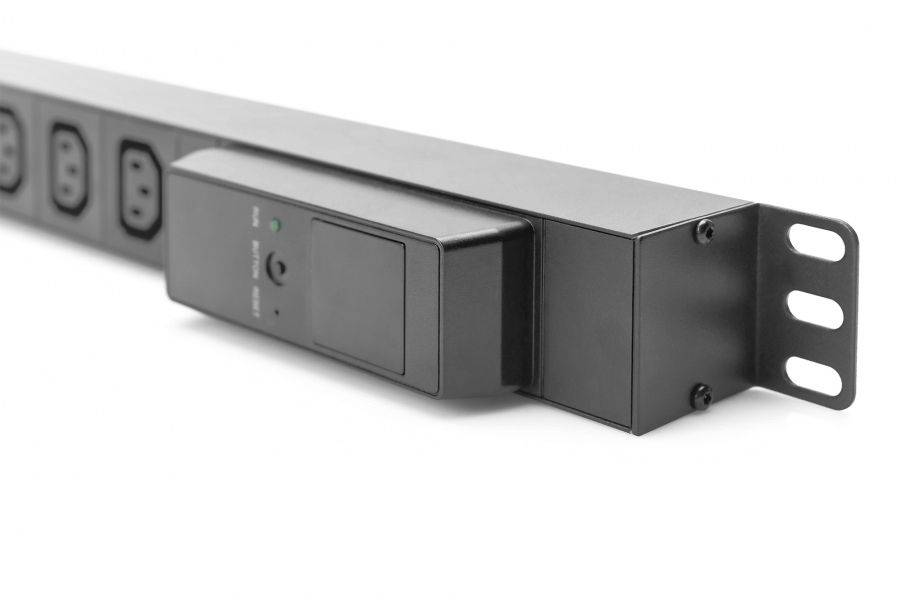

LCD display
Integrated amp meter
Local energy measurement
Optimal design for installation in 19" racks
Excellent spatial management of outlets

The DIGITUS® PDU offers you the possibility to measure the electrical input values locally in addition to the efficient power distribution, thus the load distribution can be monitored very easily on site. Equipped with C13 and C19 outputs, the PDU offers a flexible basis for professional power distribution in server and network racks. It is designed for vertical installation, which saves height units and provides more space for additional devices.

Current: 16 A
Input Plug: CEE7/7
Installation: Rack 0U, Desktop
Metering: PDU Metering
Outlets: IEC 60320 C13, IEC 60320 C19
Phase: 1ph
Power: 3,6 kVA
Volts: 230 V
Outlets: 18 x C13 outlet, 2 x C19 outlet
Mains cable: 3 x 1.5 mm², DIN 49441 16 A plug
Cable: 3 m
Max. load: 4,000 W / 250 V AC / 16 A (50/60Hz)
Display: LCD
Protective element Amp meter 16 A
Installation: Vertical, two angle profiles for cabinet installation
Dimensions (LxWxD): 983 x 44.4 x 44.4 mm
Installation length: 962 mm
Housing length: 930 mm
Temperature ranges (operation / storage): -5 °C to +45 °C/ -40 °C to +70 °C
Humidity ranges (operation / storage): 5% - 95% RH / 5% - 95% RH (non-condensing)
Maximum height above sea level (operation / storage): 0 - 3,000 m / 0 - 15,000 m
Color: Black
Protection type: IP44
Mounting material: 2 pcs. 6x16 mm cross-headed screw, 2 pcs. M6 nut

Package content:
1 x PDU with local energy measurement, 1-phase, 18 x C13, 2 x C19, 3 m cable DIN 49441 16 A plug
1 x Fastening material

Platums(cm)108
Grums(cm)11.5
Augstums(cm)8.5
Svars(kg)2.1
Tilpums(cm3)10557
Izcelsmes valstsCN
