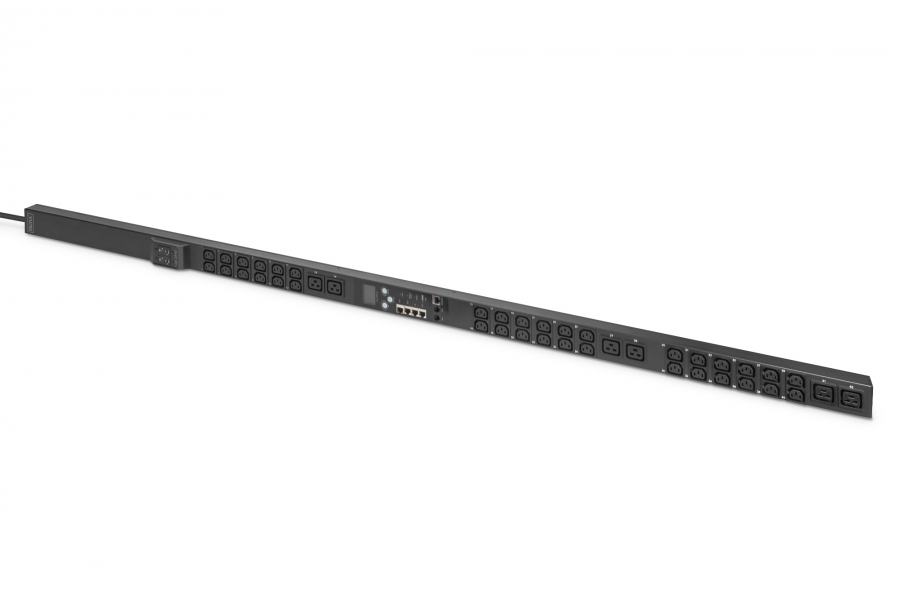

Digitus Smart PDU, Input monitored, 1-phase, 32 A, 36 x C13, 6 x C19

Reference DN-95625

Condition: New

More info

Inlet monitored PDU,vertical,32A,36xC13,6xC19 2x16A circuit breaker,3m cable,IEC309 32A plug

Optimal PDU solution with remote monitoring options for demanding IT requirements

Supports remote access via web, SNMP or Telnet
Monitoring of the input value
Configurable system with user-defined threshold value setting
Daisy chaining possible for up to 5 PDUs

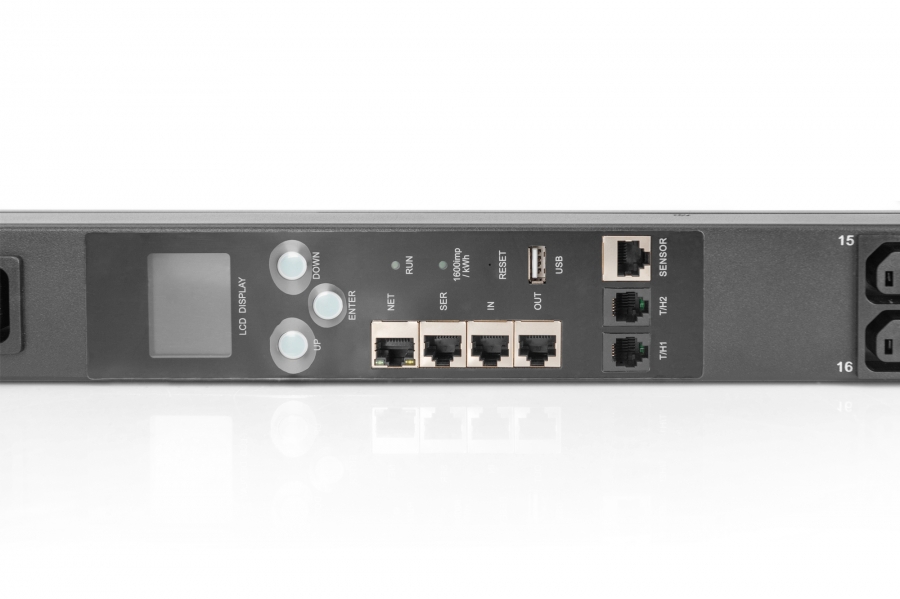

180 degree rotating local HD display
Supports alarm functions
Monitoring of the rack environment with optional external sensors
Intelligent integration into the central system
Supports tool-free installation

The DIGITUS® Smart PDU offers you the option to remotely monitor the power, voltage, total energy consumption, total power and power factor at the input level. The limit value can be set for the total current and the alarm warns you about potential system overloads. Monitoring of the operating status is also enabled as well as for the current, energy and power at the circuit breaker level. This makes it possible to efficiently manage and distribute power. The device can be accessed and configured via web, SNMP and Telnet interfaces. With the option of connecting sensors, the unit can comprise a complete environment monitoring system to control the temperature, smoke, humidity and leaks in the racks. Up to five power strips which share the same network connection and IP address can be connected in series. Furthermore, the PDU can easily be integrated into the racks with tool-free installation options.

Additional Features: Circuit breaker
Current: 32 A
Input Plug: IEC 60309 32A 1ph/N/PE 6h
Installation: Rack 0U
Metering: PDU Metering
Outlets: IEC 60320 C13, IEC 60320 C19
Phase: 1ph
Power: 7,3 kVA
Volts: 230 V
Monitoring of input current / voltage / total energy consumption / total power / power factor
Monitoring of the operating status of the circuit breaker as well as the current, energy and power
Remote access method: Web interface, HTTP, HTTPS, SNMP (v1 / v2c / v3), Telnet and serial console
Daisy-chaining of up to five PDUs (including master device)
Multi-stage user access
Compatible with temperature/humidity/smoke/leak sensors
User-defined alarm: E-mail notification & alarm signal if threshold values are exceeded for total current, temperature / humidity
Standard system alarm: If the total nominal power is exceeded; if smoke, water or an open door is detected
RJ45 connections for Ethernet and serial communication
USB A port for WLAN access or software upgrade
Integrated circuit breaker, 2 x 16 A, hydraulic

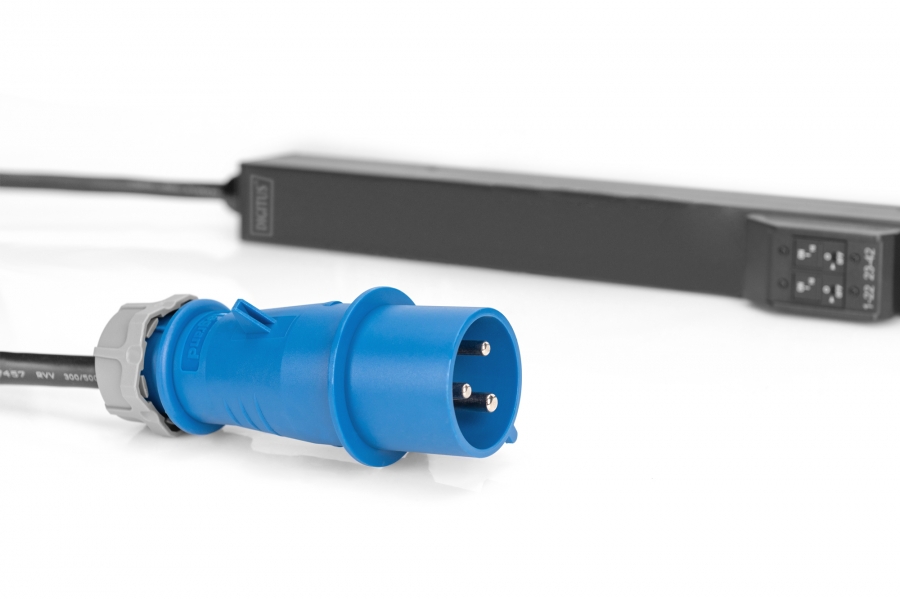

Mains cable: 3 x 6.0 mm², IEC 60309 32 A plug
Cable: 3 m
Max. load: 8000 W / 250 V AC / 32 A (50/60 Hz)

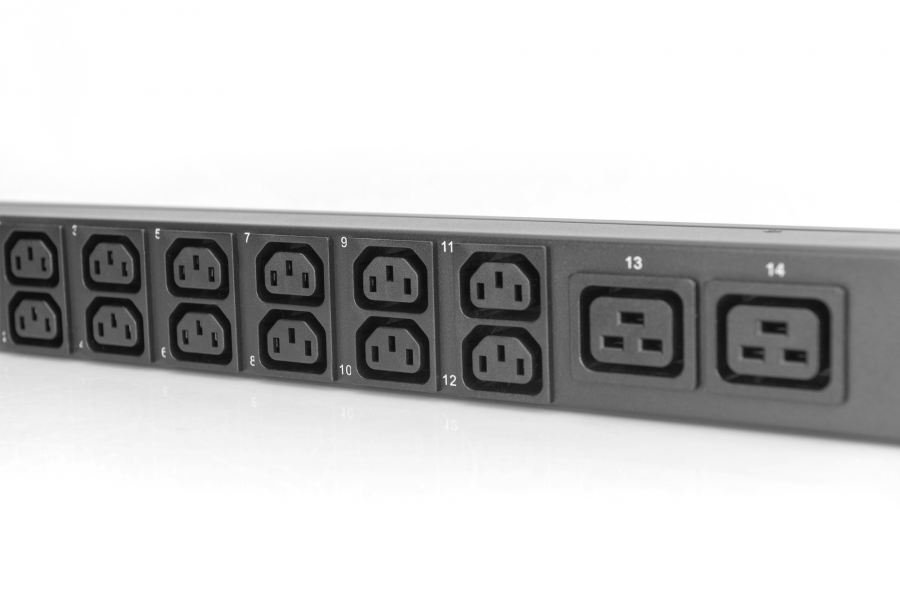

Outlets: 36 x C13 outlet, 6 x C19 outlet
Output power: C13 (10A), C19 (16A)
180 degree rotating HD display
Dimensions (LxWxD): 1850 x 56 x 52 mm
Temperature range (operation / storage): 0 °C to +45 °C/ -20 °C to +70 °C
Humidity range (operation / storage): 5% - 95% RH / 5 - 95% RH (non-condensing)
Maximum height above sea level (operation / storage): 0 - 3,000 m / 0 - 15,000 m
Color: Black
Protection type: IP44

Package content:
1 x Smart PDU, input monitoring, 1-phase, 36 x C13, 6 x C19, 3 m cable IEC 60309 32 A plug
