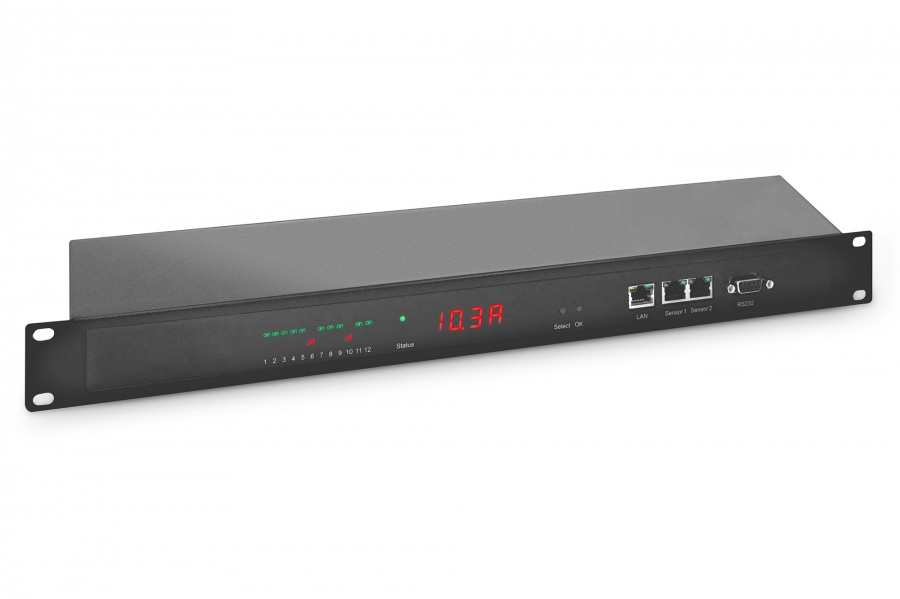

Diverse GUDE Smart PDU, 1U, Input Monitored & Switched, Input 1x16A, Output 12 x C13

Manufacturer: DIVERSE

Reference 8041-1

Condition: New

More info

Switched PDU, 16 A, 12 x IEC C13, overvoltage protection, RCM

Power distribution with remote monitoring capabilities in a compact design for IT network and server racks.

Monitors various parameters with defined thresholds and alarm tools
Residual current monitoring detects fault currents at an early stage, avoids downtimes and thus increases availability
Event- and schedule-controlled switching of individual outputs or groups
Special High-Inrush relays prevent welding of relay contacts during inrush current peaks
Precise voltage and current measurement with tolerances of +/-1% ensure reliable measurement results.
Monitoring of ambient conditions (e.g. temperature and humidity) with pre-warning and alarm function.
Integrated overvoltage protection (type 3) protects the connected loads from overvoltage
Open data interface (e.g. SNMP, Modbus) for easy integration in management systems
Clear local LCD display shows measured values and the status of the PDU, for quick on-site analysis.
Switching status and switch-on delay can be set for each power port, thus preventing inrush current peaks

The Smart PDU measures the electrical parameters per phase. Adjustable threshold values with alarming increase the availability of the connected loads. In addition, the residual current per phase is monitored. The outputs can be switched individually by remote or manual control. An integrated display shows measured values and the status of the PDU. Additional external sensors (temperature, humidity and air pressure) can be connected to the communication interface. The PDU can be permanently installed in DIGITUS® racks or other housing systems with the appropriate receptacles.

Input monitoring: current (A) , voltage (V), energy (kWh), active, apparent and reactive power (W, VA, Var), frequency (Hz), power factor, phase angle
Differential current measurement per phase
Individual switching of outputs
Integrated overvoltage protection type 3, status retrievable via network
User defined thresholds for current per phase
Extensive user-defined alarm management (remote and local)
2 sensor ports for connection of external sensors (temperature, humidity, air pressure)
Firmware update of the PDU remotely possible
Mass FW and configuration software available
User management for up to 2 users
Remote connections: 10/100 Mbits Ethernet, IPv4, IPv6
Protocols: HTTP(s), SSL, STARTTLS, Telnet, TCP/IP, SNMP v1/v2/v3, DHCP, SSH, SMTP(s), NTP, Radius, Syslog, Modbus IP, MQTT
Encryption: TLS1.3
Access protection by IP access control
2 energy counters, one counter counts permanently, the other counter is resettable
12-channel watchdog, each power port can be assigned its own watchdog (ICMP/TCP)
Input: socket IEC60320 C20 1ph/N/PE 230V / 16A
Output: device sockets IEC60320 12 x C13 (max. 10A per output)
Dimensions (mm, DxWxH): 178 x 439 (19") x 44 (1U)
Temperature range (operation / storage) : 0°C ~ 50°C / -20°C ~ 70°C
Humidity range (operation / storage) : 5 - 95% RH / 5 - 95% RH (non-condensing)
Maximum altitude, above sea level (operation / storage) : 0 - 3,000m / 0 - 15,000m

Package content:
1 x Smart PDU
1 x Mounting bracket standard
1 x Quick Start Guide
