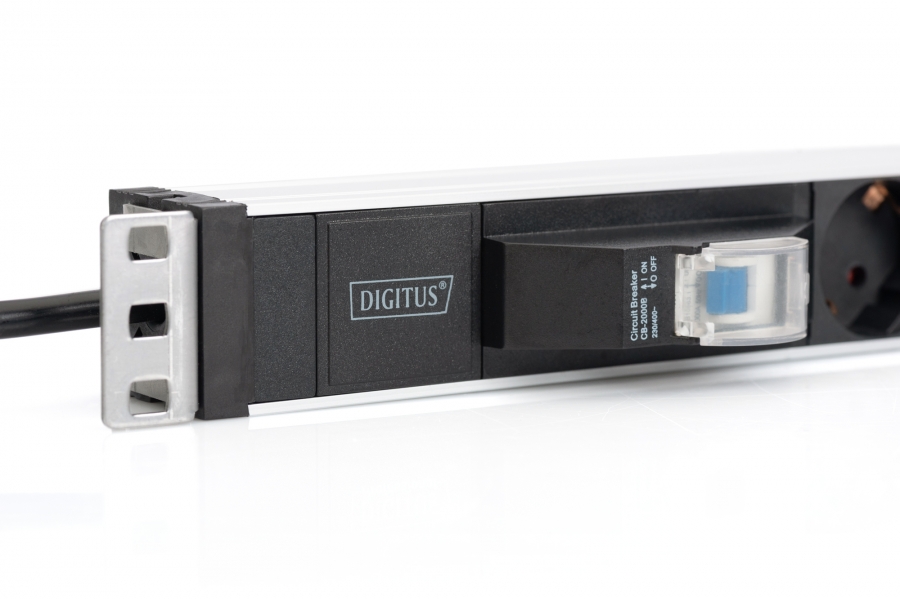

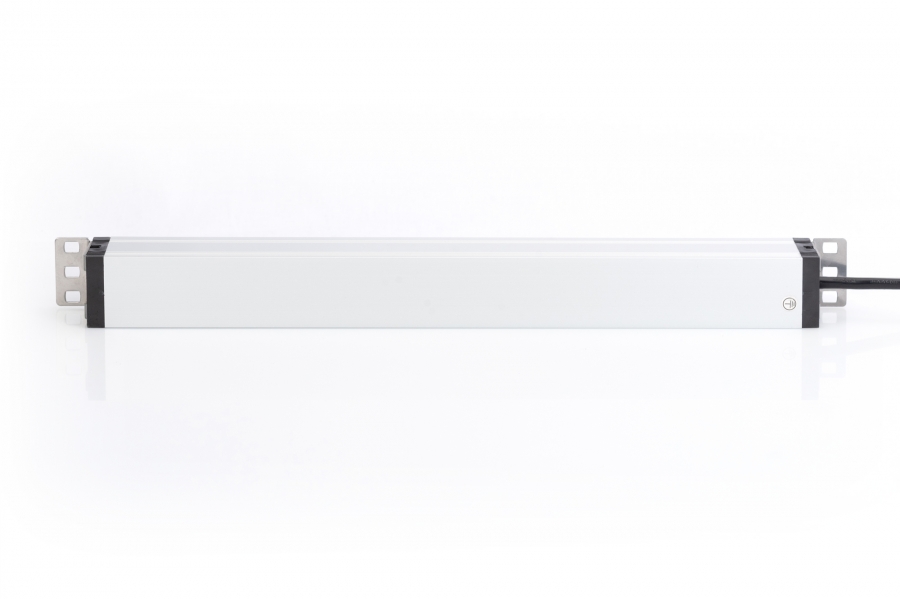

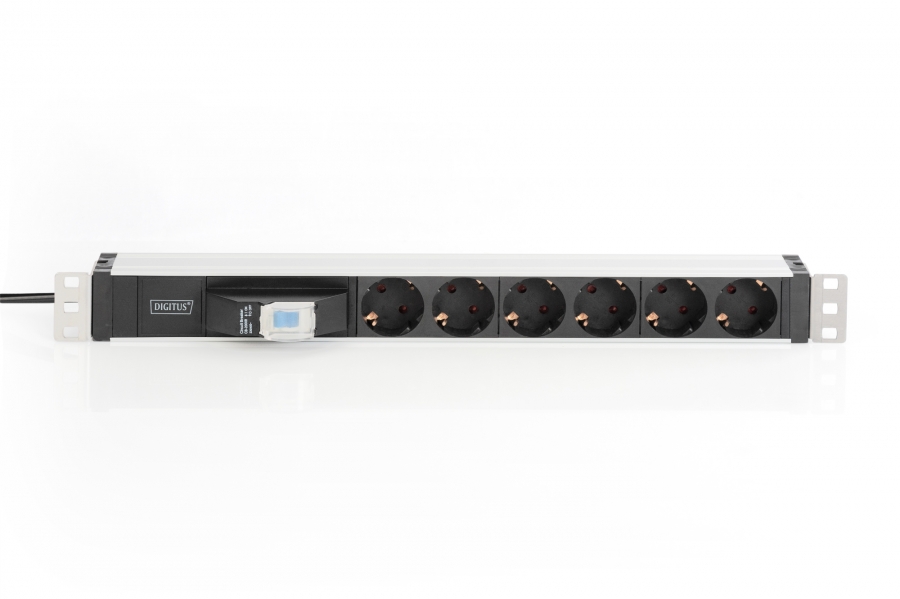

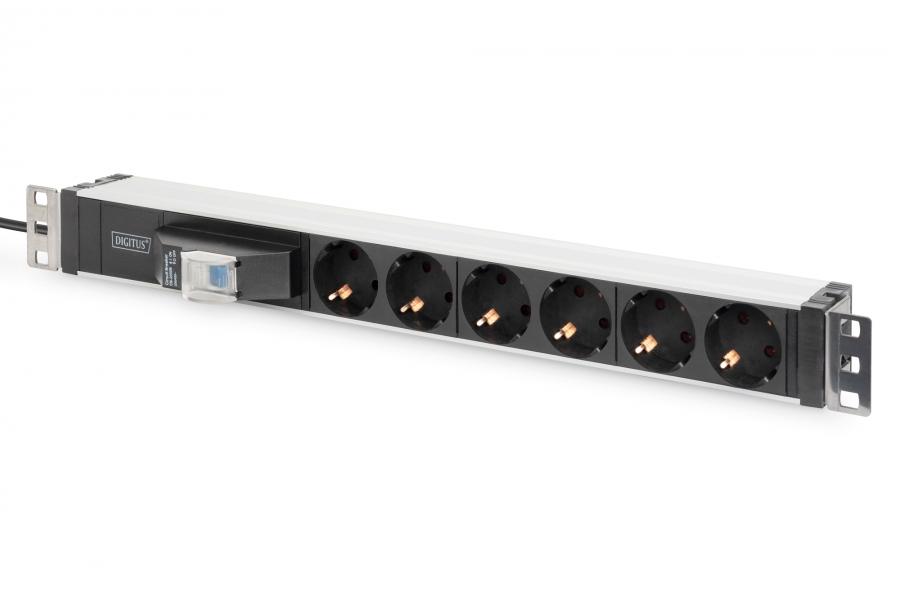

Digitus Aluminum Outlet Strip, 6 safety outlets with circuit breaker
Previous Next

Digitus Aluminum Outlet Strip, 6 safety outlets with circuit breaker

Digitus

DN-95417

New

Add to Compare
DIGITUS 1U Aluminum PDU, rackmountable 6x safety outlet,16A, 4000W, 250VAC 50/60Hz,

Safety, order and flexibility in the server rack - the DIGITUS® 482.6 mm (19") socket strips.

Orderly power supply in the 19" rack
Mounting bracket for 19" mounting included
Variable fixing of the bracket in 8 positions (4 x 45°/4 x 90°)
Clever, space-saving 45° arrangement of sockets
No blocking of adjacent sockets
Safety through the integrated circuit breaker

Order and flexibility in the server rack with the DIGITUS® professional socket strips. Plug your devices centrally into the 45° arranged shockproof sockets. Therefore, blocked or obscured adjacent sockets are a thing of the past. The socket strips are perfectly suited for 482.6 mm (19") server racks and network cabinets and offer sophisticated features. With the supplied mounting brackets, the socket strip fits easily into the 482.6 mm (19") grid of your network cabinet and looks neatly arranged. Designed for horizontal mounting, with vertical mounting being possible as well. In addition, the mounting bracket can be fixed on the socket strip in 8 different positions, 45° and 90° in 4 directions. The supply lines to the socket strip are protected by the integrated circuit breaker, which prevents overloading of the feed cabling.

Additional Features: Circuit breaker
Current: 16 A
Input Plug: CEE7/7
Installation: Desktop, Rack 0U, Rack 1U
Outlets: CEE 7/3
Phase: 1ph
Power: 3,6 kVA
Volts: 230 V
Inch form factor (IEC 60297): 482.6 mm (19")
6 child safety outlets 250VAC 50/60Hz / 16A / 4000W
Circuit Breaker: 16 A, Type-C
Circuit breaker: Short-circuit breaking capacity (Icn & Ics) - 6000A
45° arranged sockets: No blocking or obscuring of adjacent sockets
Mounting bracket for 482.6 mm (19") mounting
Mounting brackets are variably fixed in 8 positions, 90° and 45° in 4 directions
High quality aluminum casing
Child safety device: Plastic covers close the contacts on the socket
Input voltage: 230 V/AC
Frequency: 50 ~ 60 Hz
Mains supply line with earthing contact plug: 1.8 m, 3G x 1.5 mm²
Measurements: L 48,1 x B 4,5 x H 8,3 cm
Weight: 800 g
Color: silver/black

Package content:
1 x 482.6 mm (19") Aluminum 6-Outlet Socket Strip, 1 U with Circuit Breaker
2 x 482.6 mm (19") variable mounting brackets
1x user manual

Platums(cm)12
Grums(cm)78
Augstums(cm)8.5
Svars(kg)0.8
Tilpums(cm3)7956
Izcelsmes valstsCN
