VALUE 19" Industrial Rack-Mount Server Chassis, 4UH, black

VALUE

19.99.0116

New

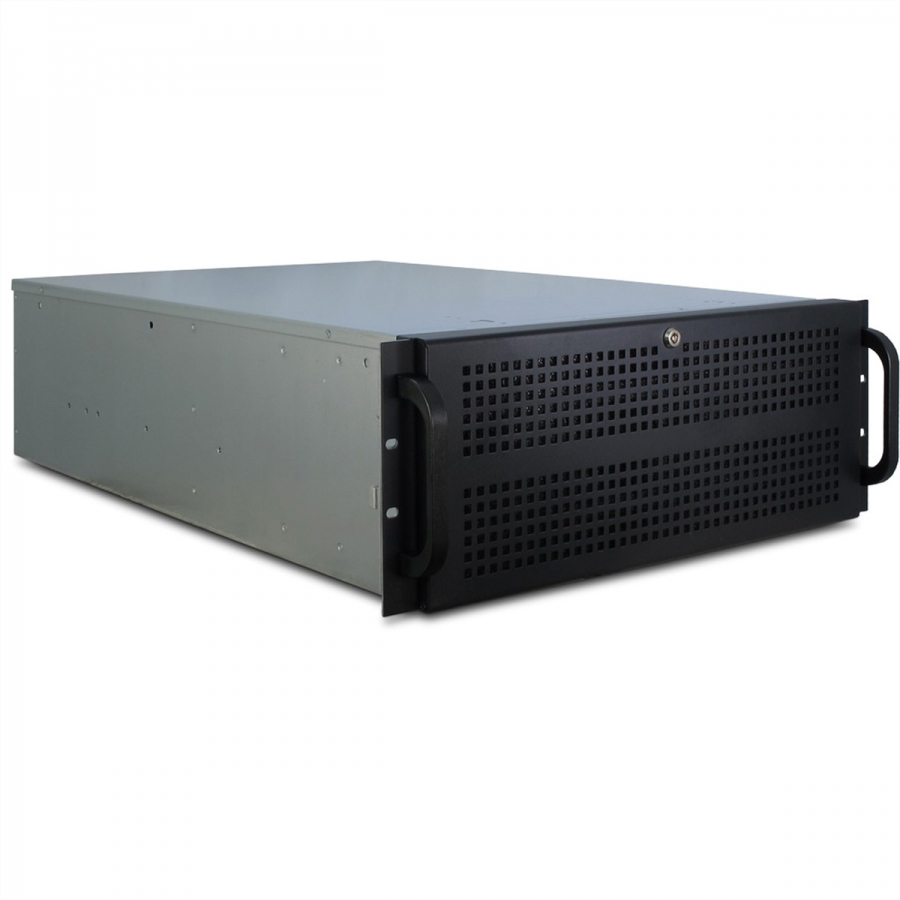

Classic, versatile 19-inch housing with four height units (4U) for harsh industrial environments

  • Classic, versatile 4U 19" industrial housing
  • Robust construction for the rough industrial everyday life

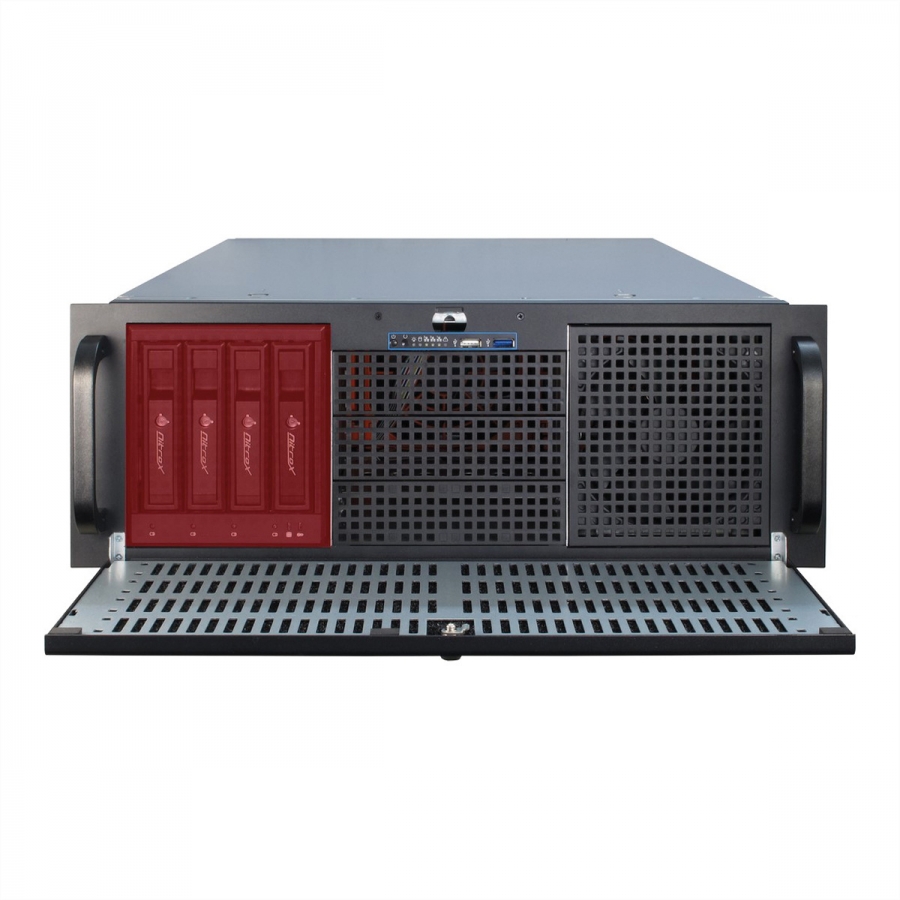

  • Lockable, integrated front flap protects the drives behind it

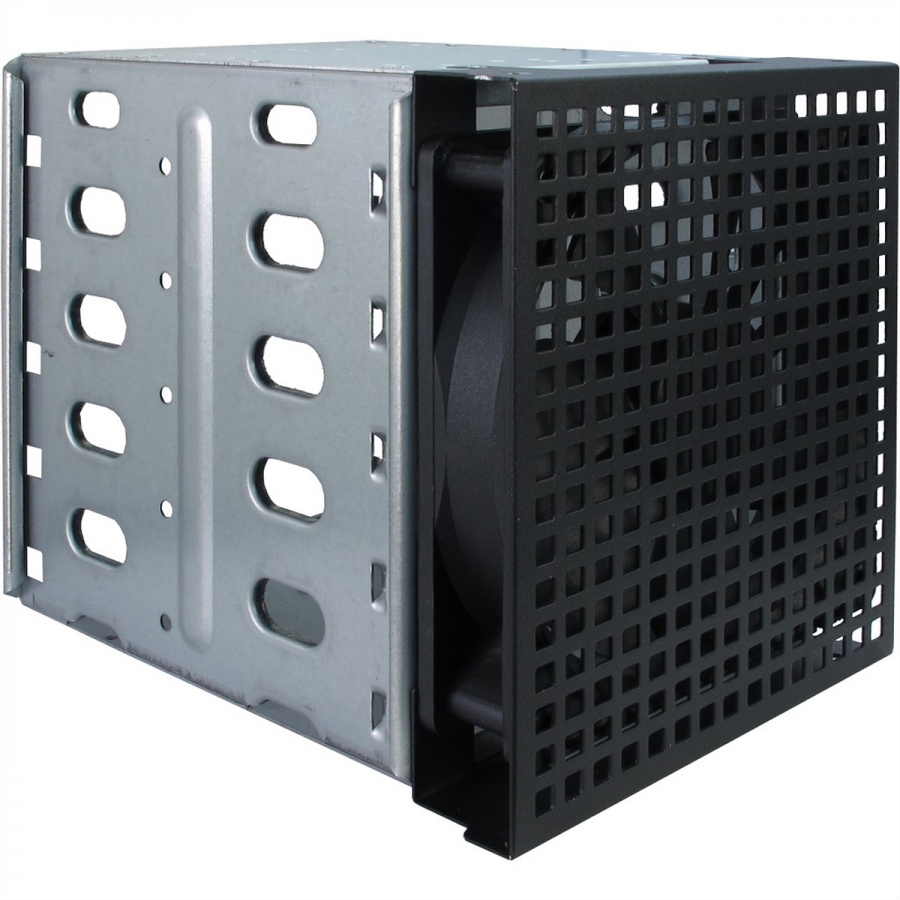

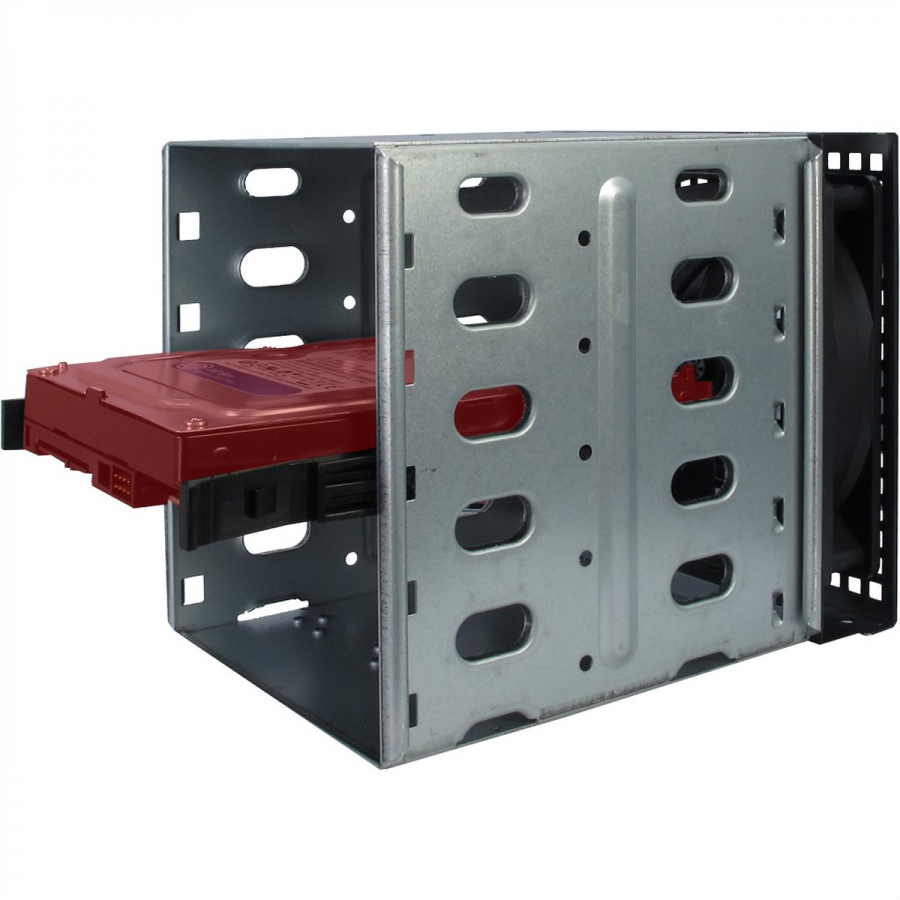

  • Plenty of space for various drives: Max. 3x 5.25", 11x 3.5", 4x 2.5"; the drive cages can be removed in a few easy steps
  • Max. Mainboard size: 305x345mm (Mini ITX, μATX, ATX, eATX, SSI EEB)
  • Space for mounting an ATX power supply (not included)
  • Two USB ports on the front panel (1x USB 3.0, 1x USB 2.0)

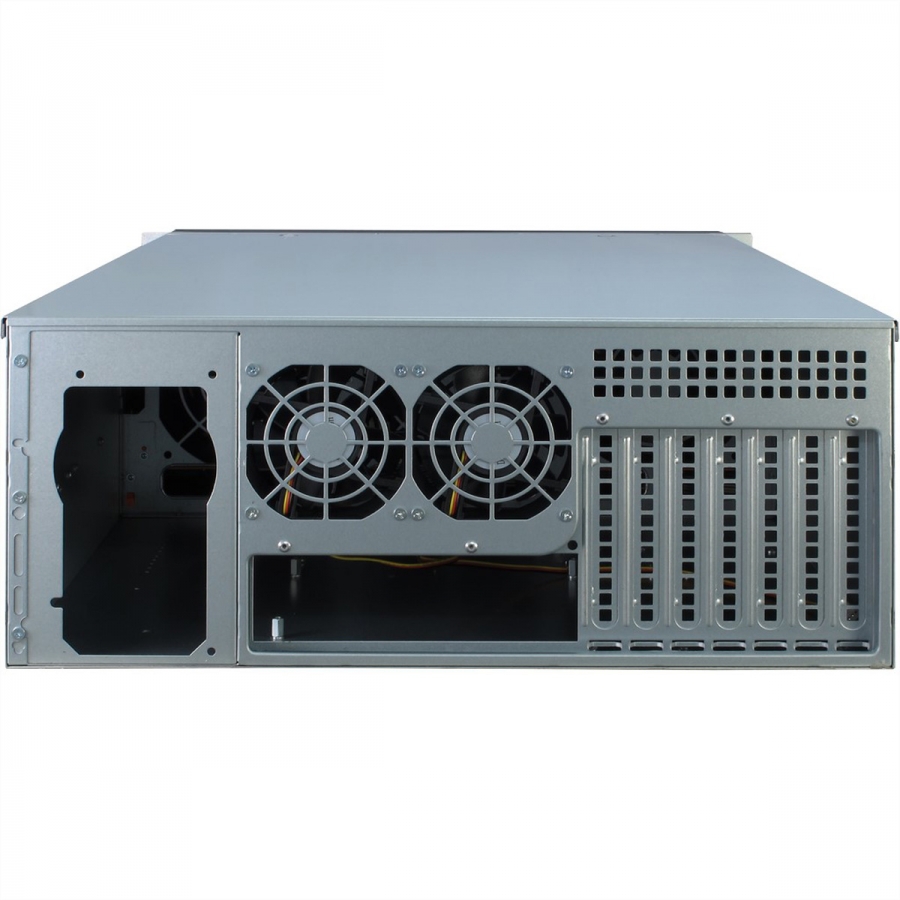

  • 5x 120mm and 2x 80mm fans are already installed as standard to ensure optimum cooling; with replaceable air filter on the front side
  • Power and reset switches, as well as LEDs on the front panel for power and hard disk activity, 3x network activity and 1x alarm
  • Colour: black
  • Optional accessories: Telescopic slide 19.99.0117

Keys, screw set, mounting frame for mini redundant power supply, wrench for assembly of the spacer, mounting rails for 5.25" and 3.5" drives



ManufacturerVALUE
Product groupPC casing
Product typeIndustrial PC casing
Colourblack
Scope of deliveryHousing, wrench, screw range, installation frame for mini-re
5.25 slots3x
3.5 slots11x
HDD slots4x
Dimensions (HxWxD)178 x 482 x 688 mm
Weight13.9 kg
Front connectors2x USB 3.0
Power supply unitwithout PSU (ATX standard)
Fan front2x 120mm, built-in
Fan back side2x 80mm
Fan side panel3x 120mm, built-in
Gross weight15
Current catalog editionC20-04.06
