Equip Wandgehäuse 10" 06U 300x300mm grau

Reference EWM-06-3030-G

Condition: New

More info

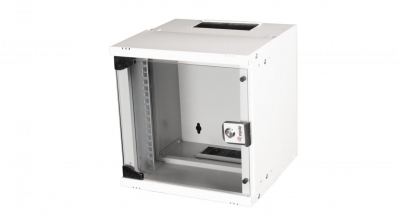

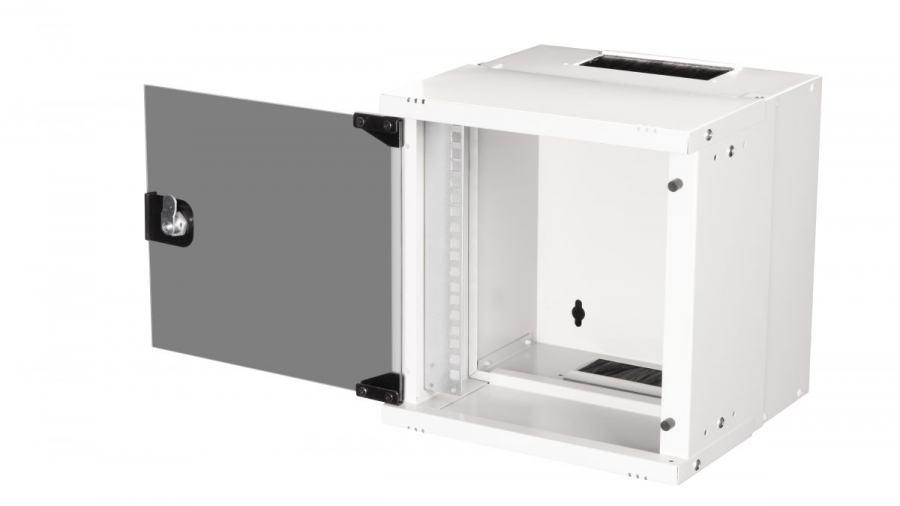

Introducing the Equip Eco Mount Wall Mount Cabinets—designed for seamless integration and efficient management of network components, emphasizing sophisticated cable organization. Constructed from robust 1.5 mm thick steel sheets, these cabinets are paragons of durability and security, ensuring the protection of your valuable equipment. Choose from elegant shades of grey (RAL 7035) and black (RAL 9005) to enhance both functionality and aesthetics. Available in 10“ or 19“ variants, the Equip Eco Mount series offers a smooth experience exclusively for wall-mounted configurations. The door design allows easy reorientation from right to left to suit your spatial requirements. To maintain an optimal operational environment, the cabinets are equipped with integrated ventilation slots at the top.Our design prioritizes effective cable management. The top and bottom each have a cable entry covered with a removable plastic cover for easy cable routing and protection.
We offer a broad range of accessories, like cable management tools and shelves, to meet diverse operational needs. The Equip Eco Mount Wall Mount Cabinets allow you to enhance your IT infrastructure confidently and efficiently. Choose our cabinets for a smarter, more organized, and reliable network solution. Opt for either the 10“ or 19“ model and elevate your IT environment's performance today.
Please note, these cabinets are not pre-assembled. Assembly is straightforward, and we provide an instructional video to guide you through the process.

Rack capacity	6U
Type	Wall mounted rack
Product colour	Grey
Material	Steel
Frame type	Closed
Product design	2-post
Back door construction	Steel
Front door construction	Tempered glass
Side panel construction	Steel
Removable back door	Nē
Removable front door	Jā
Removable side panels	Nē
Side panels included	Nē
Key lock	Jā
Back door key lock	Nē
Front door key lock	Jā
Side panel key lock	Nē
Rack rails	Nē
Rack rail thickness	1.5 mm
Adjustable stand	Nē
Adjustable depth	Nē
Adjustable feet	Nē
Cooling type	Passive
Soundproof	Nē
Main PDU	Nē
Monitoring	Nē
Cable management	Nē
Mounting hole shape	Square
Stabilising foot screw	Nē
Castor wheels	Nē
Door opening angle	200°
Assembly required	Nē
Preassembled	Jā
Built-in UPS	Nē
Size (imperial)	21.1 cm (8.3")
Width	153 mm
Depth	300 mm
Height	330 mm
Inner width	30 cm
Inner depth	28.5 cm
Inner height	26.7 cm
Weight	4.58 kg
Mounting depth (min)	17 cm
Mounting depth (max)	27 cm
Nuts included	Jā
Number of nuts	10
Screws included	Jā
Number of screws	10
Plinth panel	Nē
Temperature sensor	Nē
Wall mounting kit	Jā
Mounting kit	Nē
Grounding kit	Nē
Quick installation guide	Nē
Manual	Nē
Package width	349 mm
Package depth	330 mm
Package height	153 mm
Pallet net height	2.01 m
Pallet net length	110 cm
Pallet net width	130 cm
Total carbon footprint	0.7832 kg of CO2e
Country of origin	Turkey
Harmonized System (HS) code	853710980019
Master (outer) cases per pallet	144 pc(s)
Layers per pallet	12 pc(s)
Products per pallet	144 pc(s)
