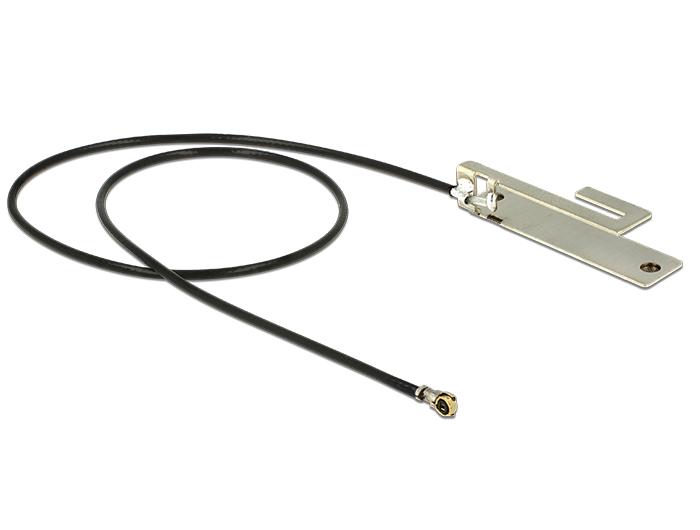

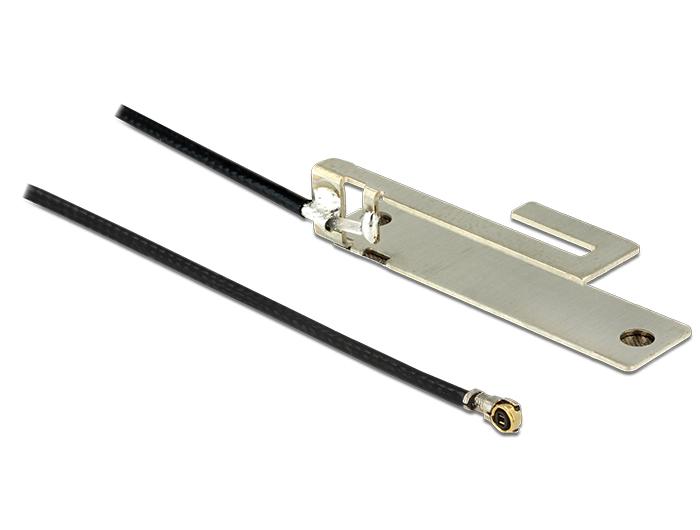

Delock WLAN Antenna MHF IV HSC MXHP32 802.11 bgn PIFA 3 dBi 250 mm internal

DELOCK

86183

New

This Delock WLAN antenna can be integrated into devices with MHF IV/ HSC MXHP32 compatible connector.

More details

Description:
This Delock WLAN antenna can be integrated into devices with MHF IV/ HSC MXHP32 compatible connector.

Specification:
• Connector: Miniature RF coaxial plug MHF IV/ HSC MXHP32 compatible
• PIFA: Planar Inverted F-Shaped Antenna
• Frequency range:

2.400 - 2.500 GHz
• Antenna gain:
3.0 dBi maximal
-5.0 dBi average
• Impedance: 50 Ohm
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Dimensions: (LxWxH): ca. 25.0 x 6.0 x 5.0 mm
• Cable category: coaxial
• Cable colour: black
• Cable attenuation: 2.5 dBi @ 2400 MHz per meter

• Cable diameter: ca. 1.13 mm
• Cable length incl. connectors: ca. 250 mm

System requirements:
• Device with free MHF IV/ HSC MXHP32 compatible connector

Package content:
• Antenna

Antenna
